'Motorize Any Cart' Location Dual 2.0 Kit

'Motorize Any Cart' Location Dual 2.0 Kit

Regular price $3,795.00 USD
Regular price $3,995.00 USD Sale price $3,795.00 USD
Sale Sold out

This Location Dual 2.0 kit with matching swivel wheels fits your existing gear cart - no matter what you want to move.

Turn any rolling cart or flat surface into a motorized gear-moving machine.





Stop breaking your back. No more pushing heavy gear over rough terrain, or struggling up steep loading ramps.

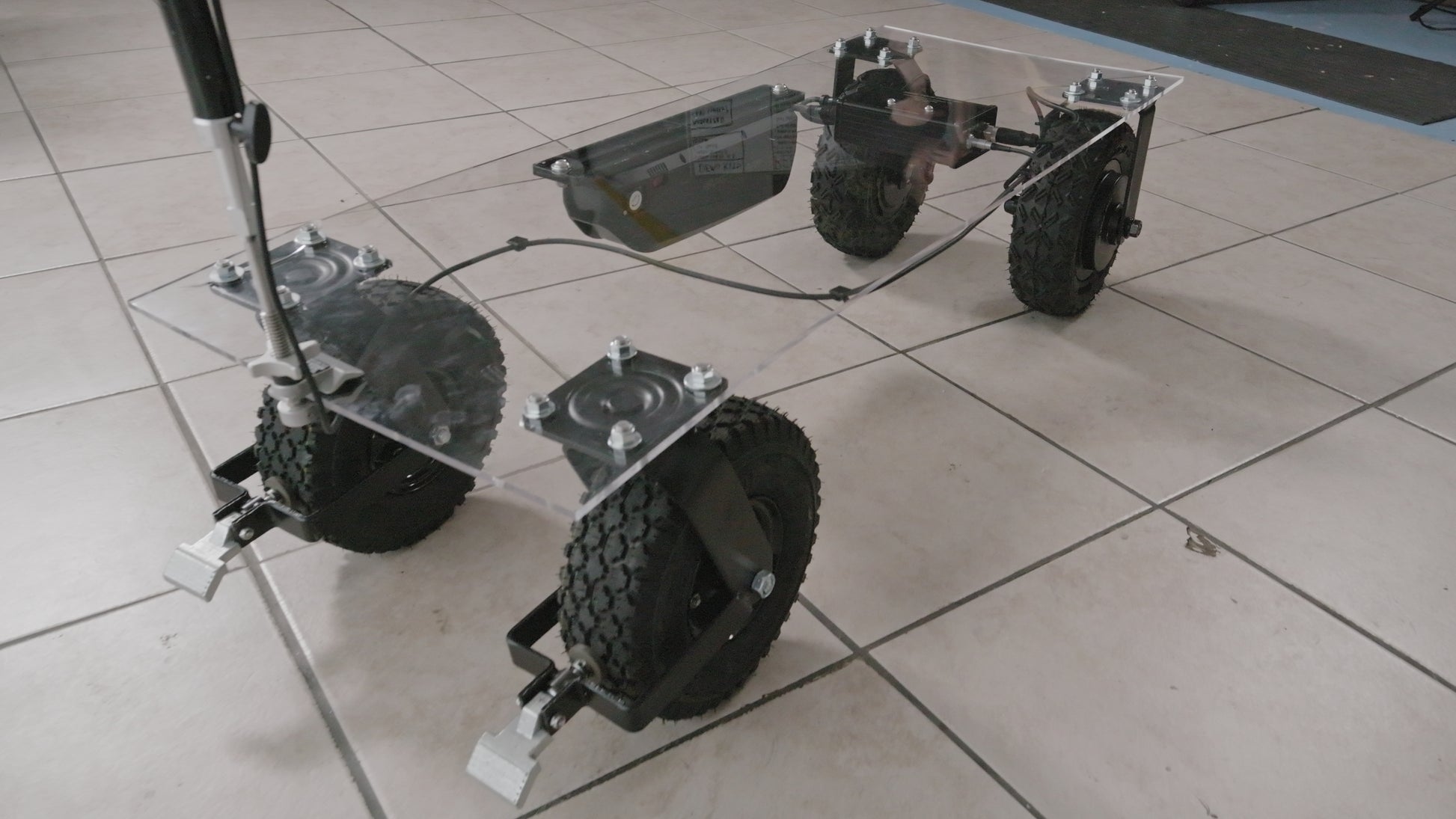

This modular system bolts onto standard 10" wheel mounts, with the flexibility to place the battery, control box and throttle anywhere needed.

Producing up to 800W of power per wheel, this system has a weight capacity of more than 2000lbs pounds, and can move up carts of a 1500lbs or more up loading ramps and though steep terrain with ease.

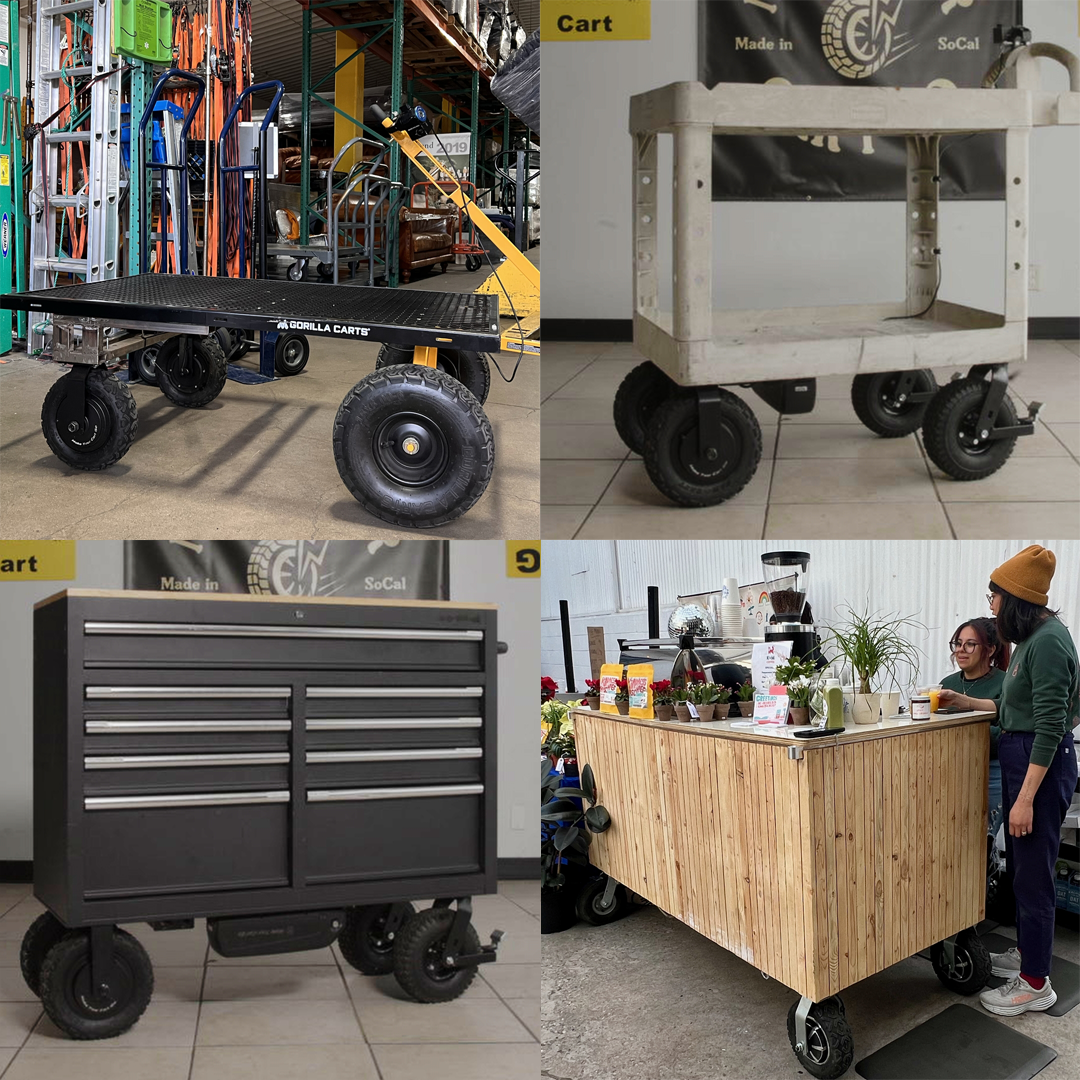

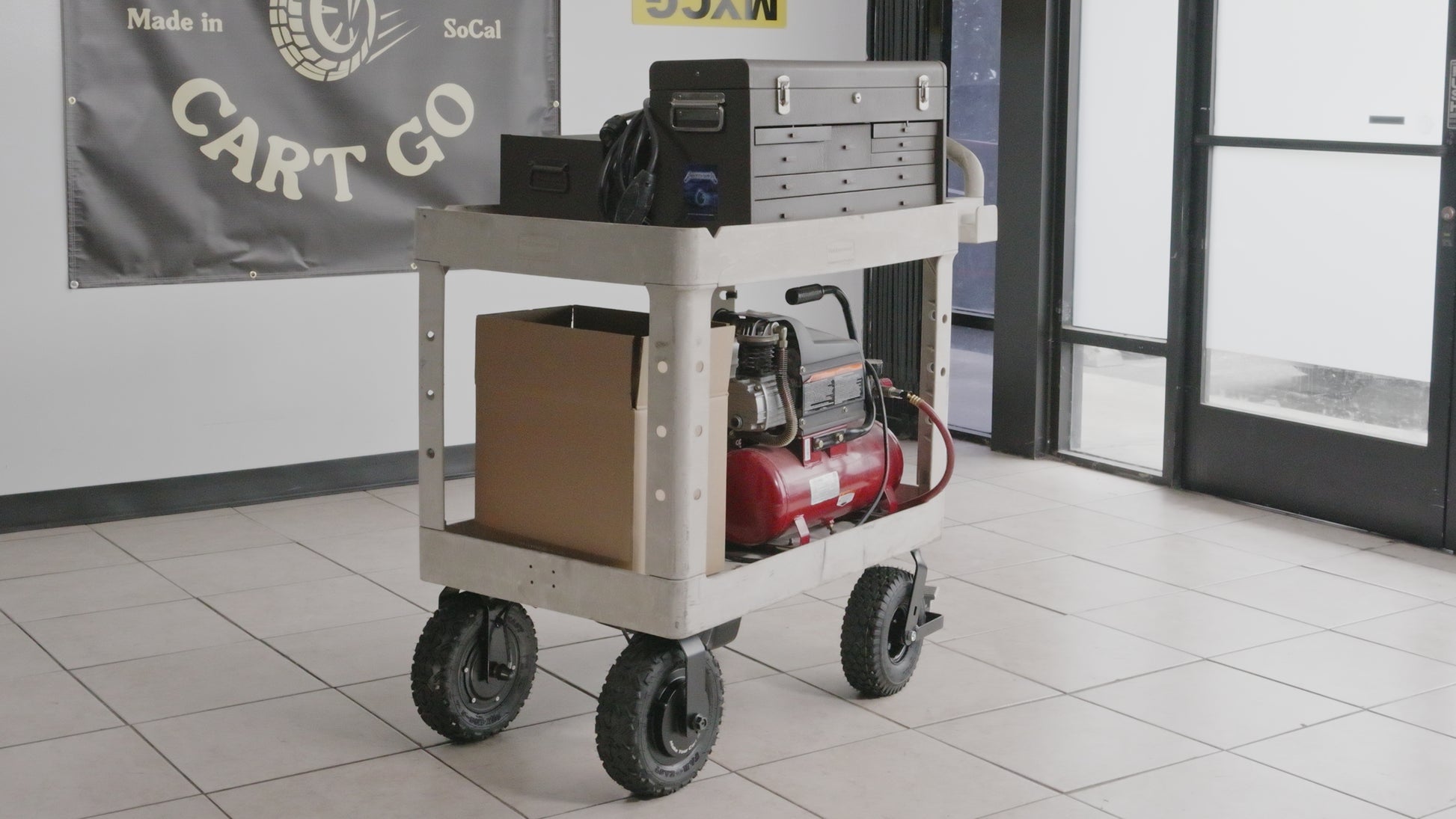

Tool boxes, fuels carts, catering carts, coffee carts, construction carts - anything that can fit a 10" wheel caster can now move itself with a simple thumb throttle.  Customization for fitting other specialized carts available.





Our Speed Select throttle means you're always in control, and our specialized hub motors let you push your cart just as you did before even when powered on for ease of maneuverability.

The kits can be fitted with optional dual disc brake systems to make downhill trips and ramp loading safer.

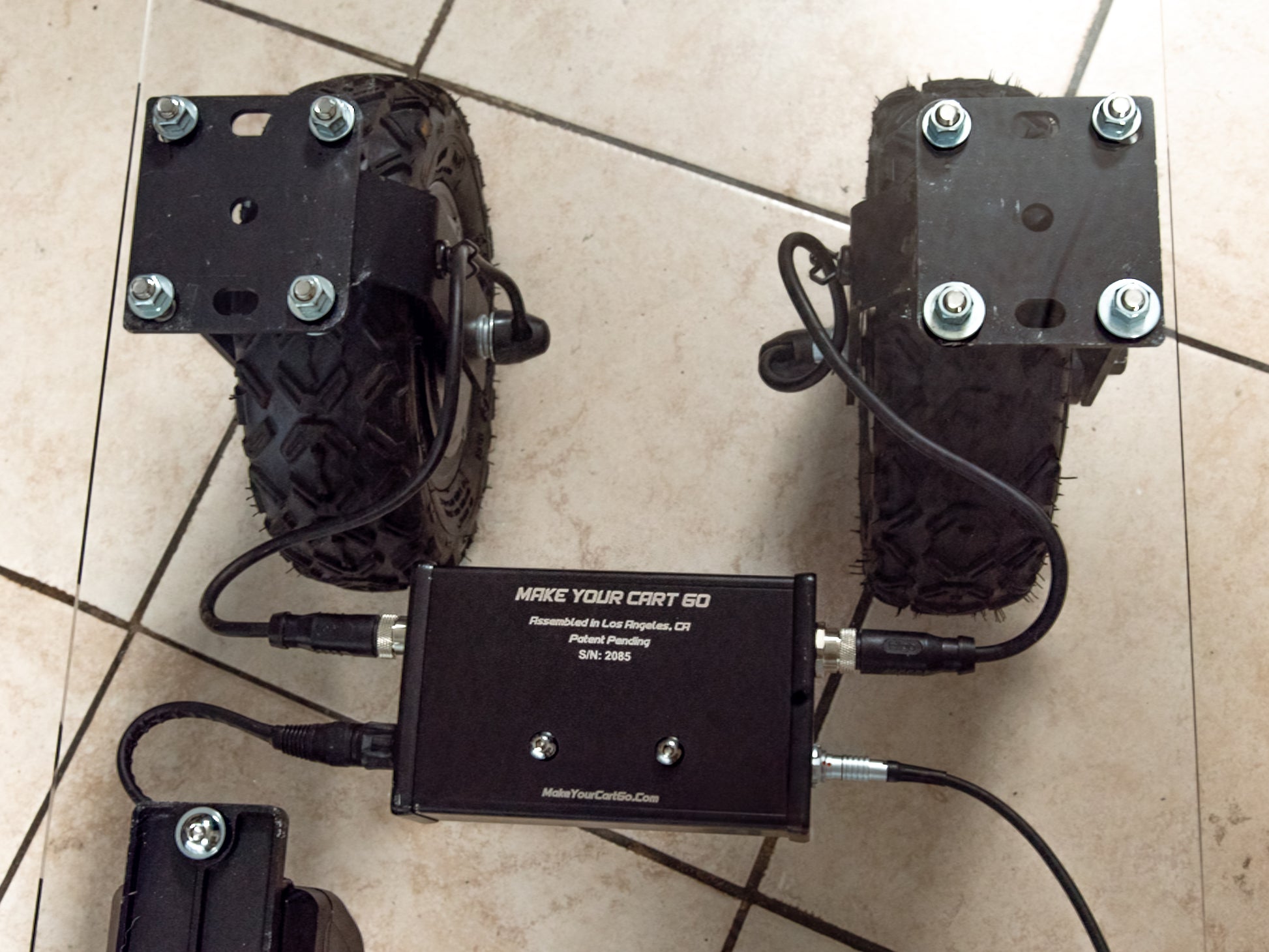

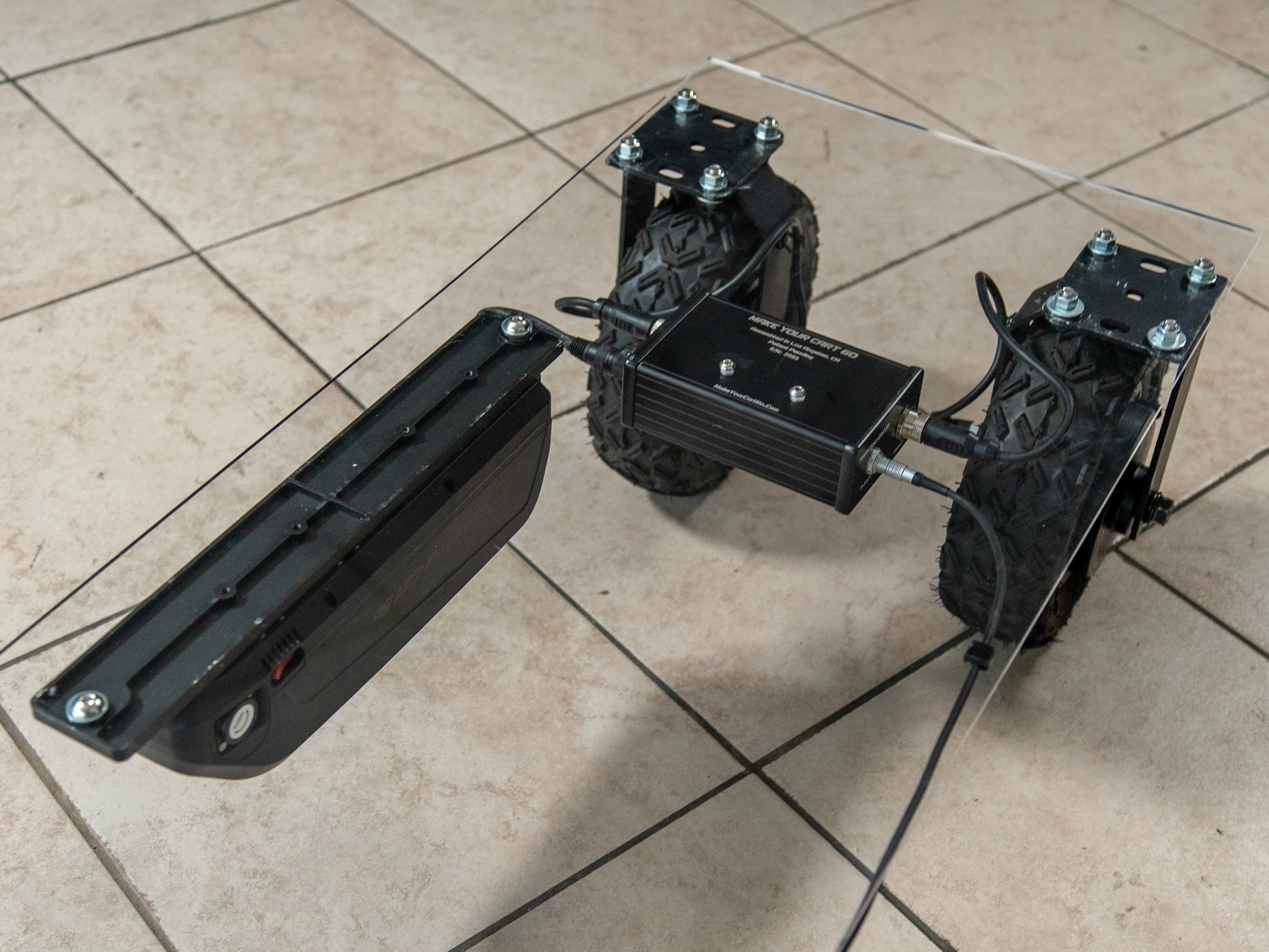

This simple-to-install system includes:

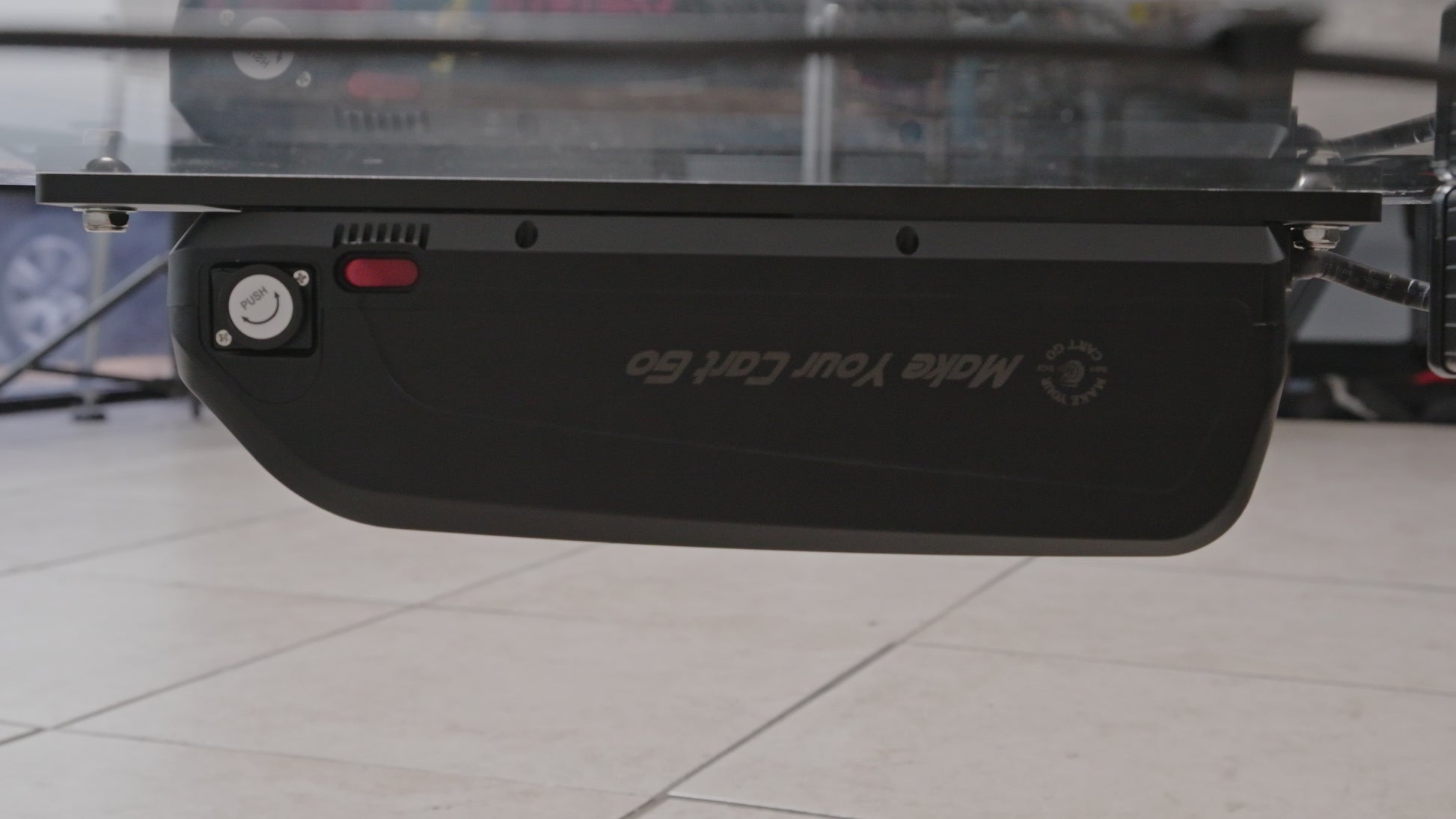

  • 52V 10.5Ah Rechargeable Battery with Mounting Plate and Charger: This high-capacity battery lasts typical users a week or more.

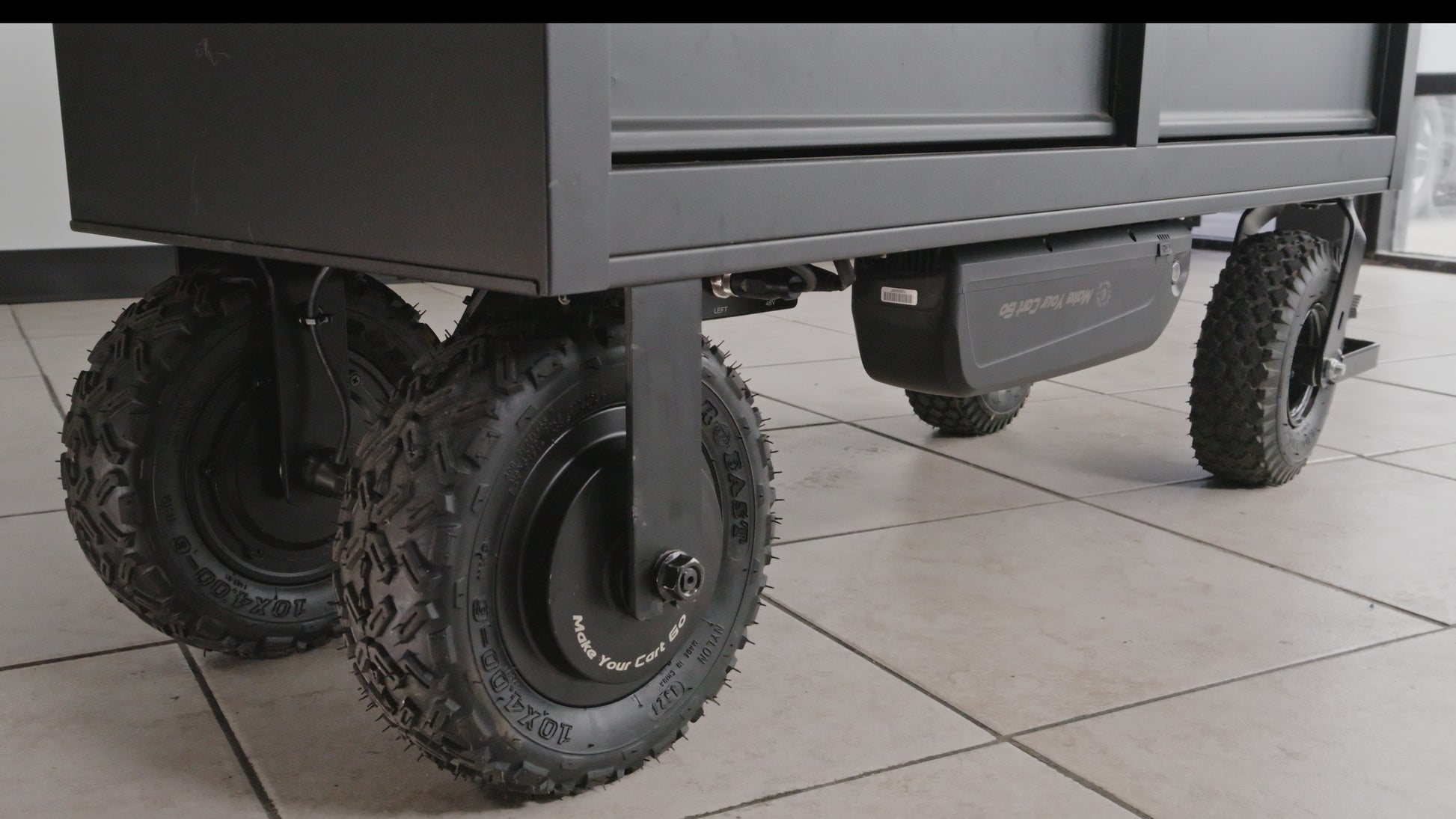

  • 2 - 10" Motorized Wheels: Engineered with watertight construction for optimal durability and performance. Offset fork design improves side clearance to keep wheels within the footprint of the cart.

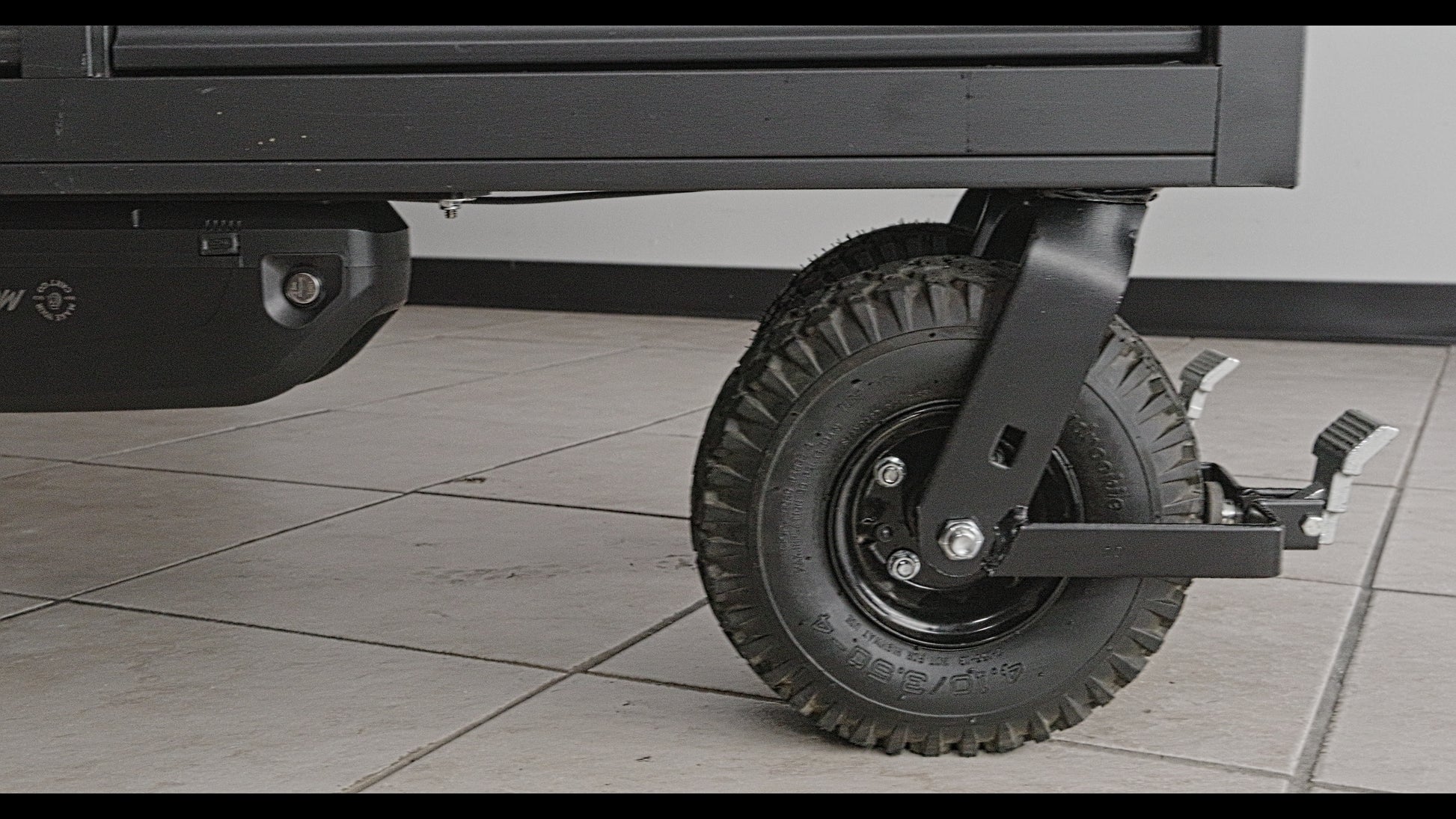

  • 2 - 10" Swivel/Steering Wheels: A swivel caster with a brake that actually works! This 10" swivel caster comes with a rugged face contact brake, and industrial foam fill for a flat-free tire that rolls smooth for the life of your cart.

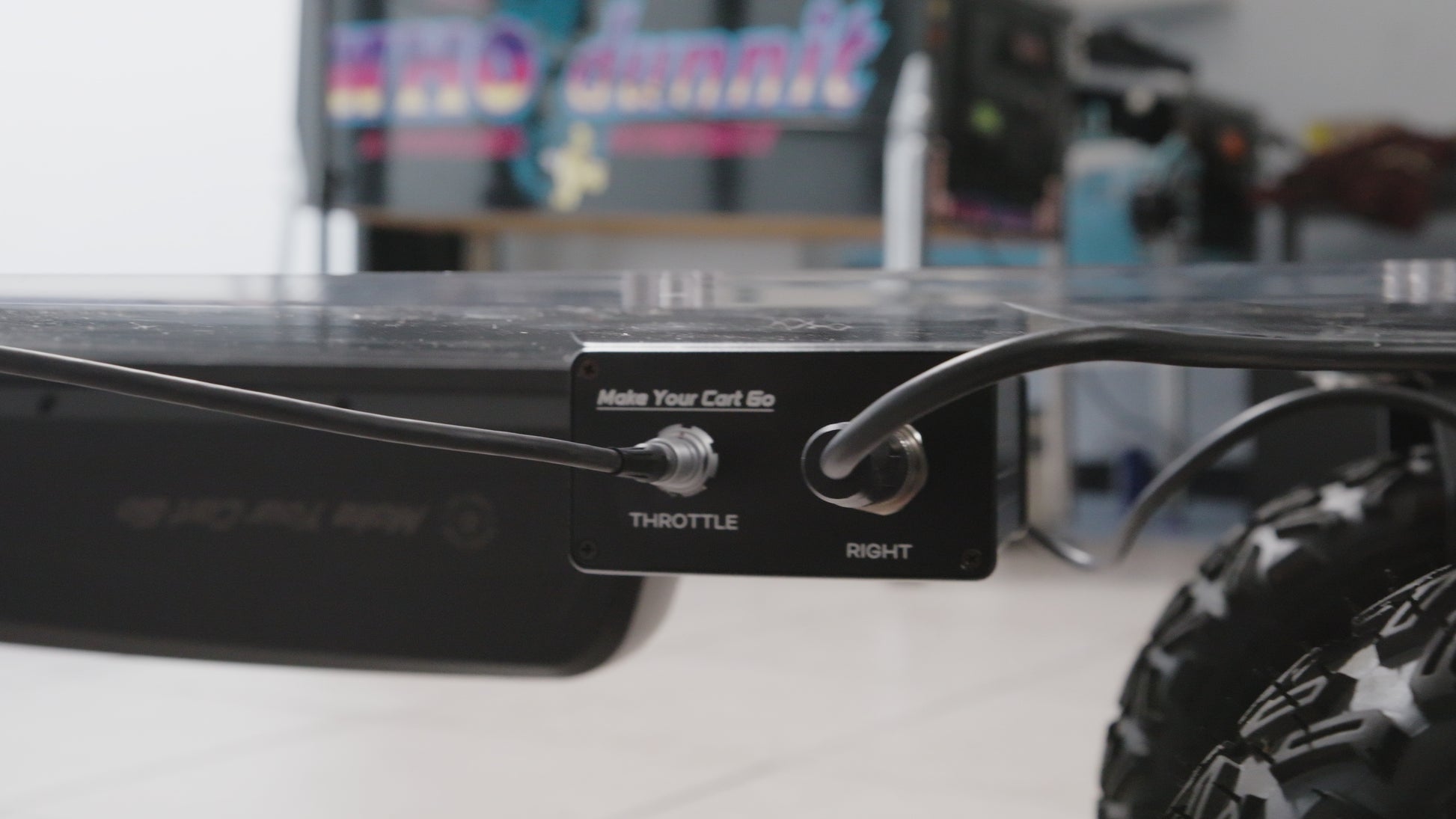

  • Weather-Proof 48V Aluminum Control Box: Includes IP68-rated connectors and mounting inserts for easy installation.

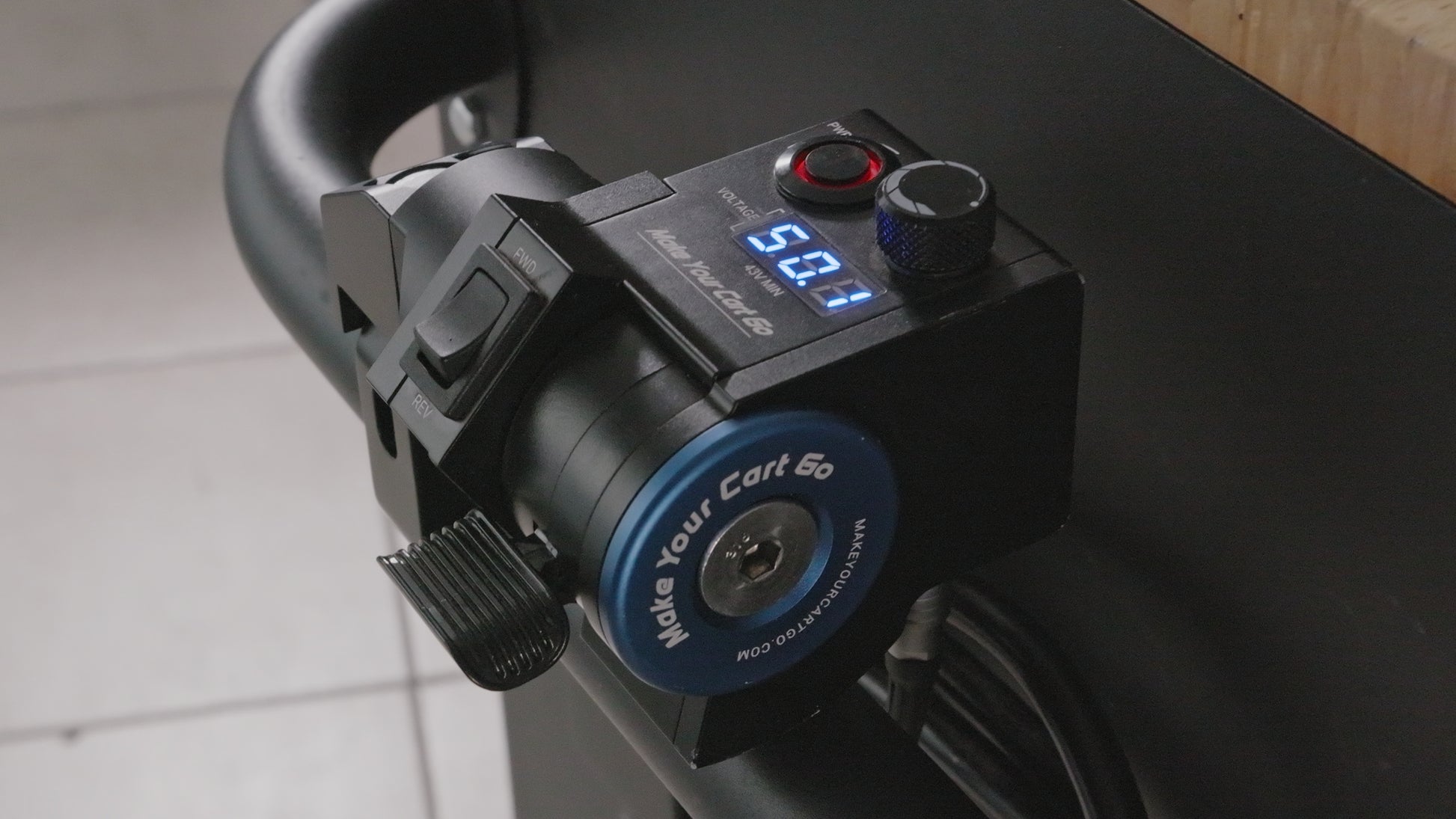

A black motorized cart throttle with a digital display, speed knob, and additional control buttons mounted on a metal rod.


  • Speed Select Throttle: Featuring a power cut-off switch, reverse switch, Speed adjustment knob and adjustable mounting options for almost any cart.



  • 7' Throttle Cable: Designed with IP68-rated 6-pin connectors for secure connections.




  • 5' XLR Power Cable: Durable top-of-class XLR connectors and wire.



Foam-Fill Details

This industrial-grade rubberized foam-fill makes flats impossible, and increases the weight capacity of the wheels.

No flat spots - these tires keep their shape even during long periods of storage.



Installation Guides and Video

Video Install Guide

Printed Step-by-Step Instructions



Operating Manuals

52V Battery and Charger Manual

Location (48V) Kits Install Guide

Studio Kits (24V) Install Guide

CineKit List Full Install and Review

Example Installation







Technical Specs

MOTORIZED WHEEL AND FORK
Type: Brushless DC Electric Hub Motor
Connector: Higo 9-pin Connector, IP68 Rated
Rated Power: 48VDC 500 Watt (800 Watt Peak)
Max Torque: 30-60 N.M. (max 80 N.M)
Max Current: 30 amps
Load Weight:

330lb Pneumatic
700lb Foam Filled

Weight:

10 lbs Pneumatic
15 lbs Foam Filled

Dimensions: 10” Wheel, 10×4-6 tubeless tire
Environment: Weather Sealed Motor, IP68 Rated Connectors
Mounting: Fork with standard 4-hole bolt pattern

THROTTLE
Controls:

6-Pin Push/Pull Connector
Latching On/Off Switch
Speed Control Lever
Forward/Reverse Toggle Switch

Weight: 1.0 lb
Dimensions:
Environment: IP68 Rated Connectors
DC Input Range: 5 VDC
Mounting: Adj. Mounting Clamp fits up to 58mm (2.28") width

CONTROL BOX - LOCATION DUAL
Input:

3-Pin XLR Power Input Connector
6-Pin Throttle Connector

Output: 2x Wheel Connectors Higo 9-pin Connector IP68 Rated
Weight: 1.5lb
Dimensions: 6.30” x 4.05” x 2.09”
Environment: IP68 Rated Connectors
DC Input: 60v-42v, 17 amp DC Max Output
Mounting: 2X ¼-20 Mounting holes


CONTROL BOX - LOCATION SINGLE
Input: 3-Pin XLR Power Input Connector
6-Pin Throttle Connector
Output: 1x Wheel Connectors Higo Connector IP68 Rated
Weight: 1.0 lb
Dimensions: 6.30” x 4.05” x 2.09”
Environment: IP68 Rated Connectors
DC Input: 60v-42v,  17 amp DC Max Output
Mounting: 2X ¼-20 Mounting holes

BATTERY
Battery Type: Li-Ion Battery, LG Cells
Rated Voltage: 52v
Rated Capacity: 10.5 Ah
Battery Cell: 3500mAh
Charge Input: 4A
Connector 3-Pin XLR, IP68 Rated
Discharge: 58.8 VDC-39.2 VDC <30 Amps
Weight: 13lb
Cycles: ≥1000
Dimensions: 14.5 X 4 X 3.5”
Environment: 32-110F
Mounting: 2X 3/8" mounting holes on UBBP battery base plate
