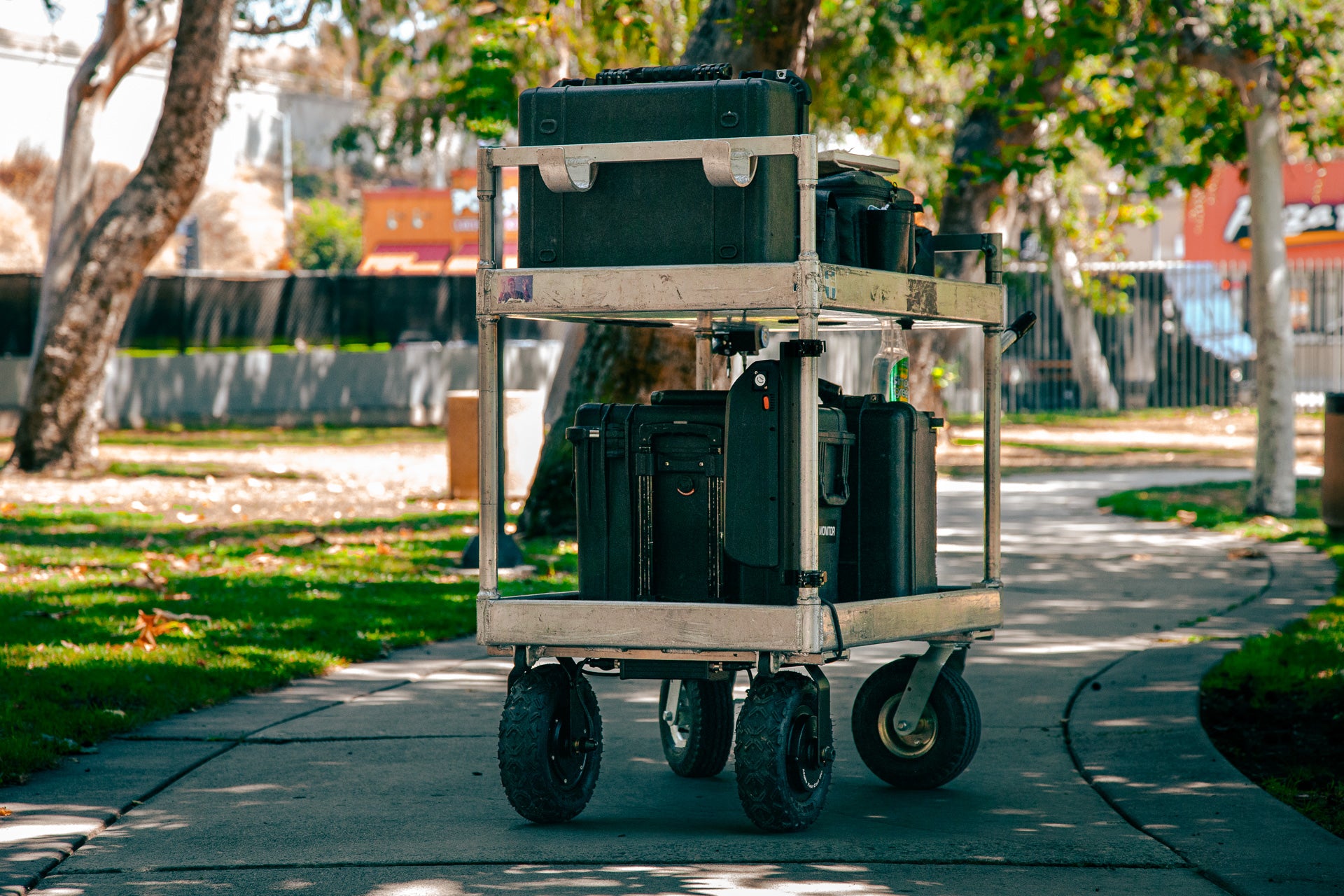

Revolutionize your gear transport with a powerful blend of performance and maneuverability. The LOCATION Dual is your key to effortlessly navigating any production set.

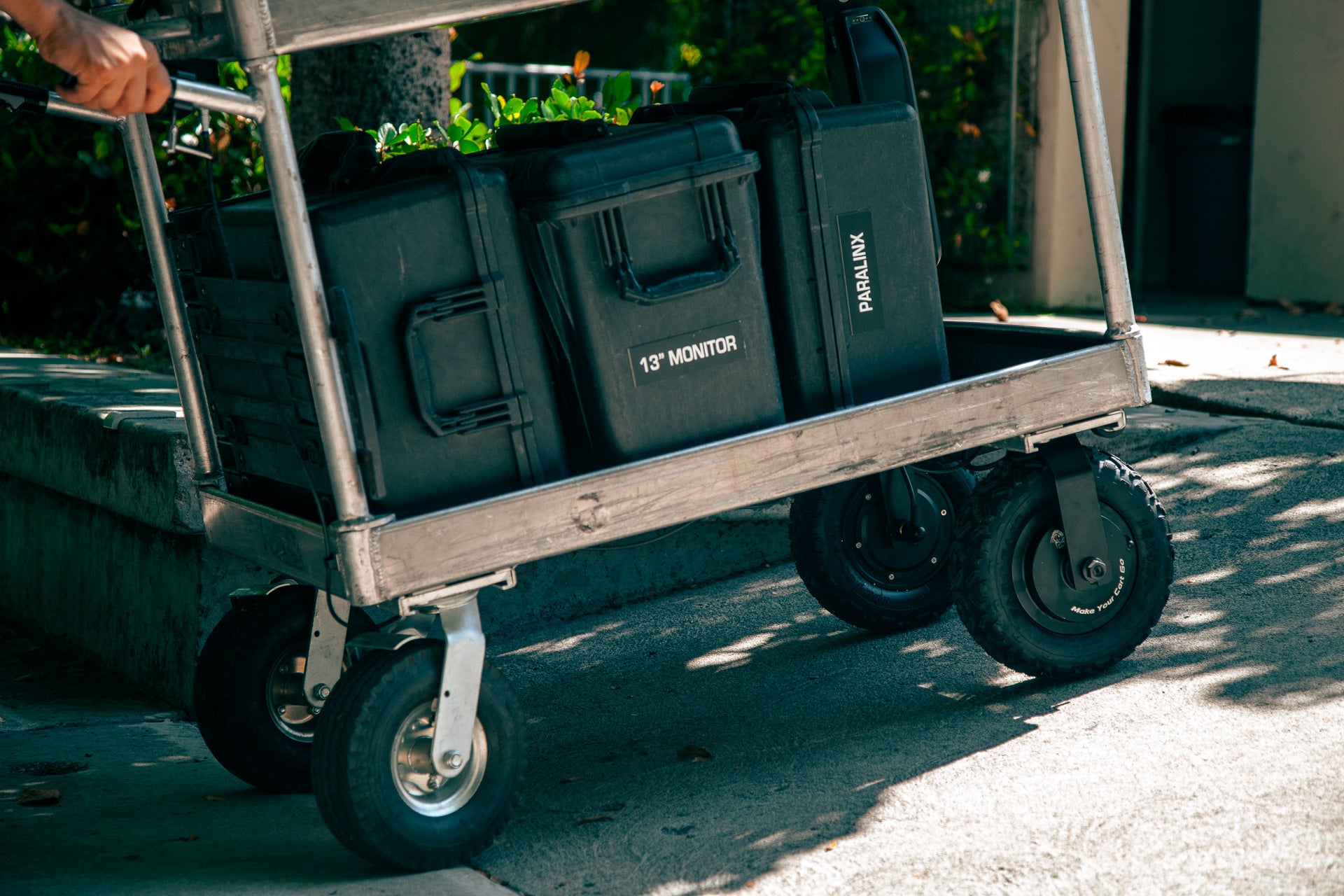

With a dedicated 52V battery and two powerful hub motor wheels, the LOCATION Dual seamlessly replaces the standard wheels on Backstage, Yeager, or any film equipment cart equipped with standard 10" casters.
This simple-to-install system includes:

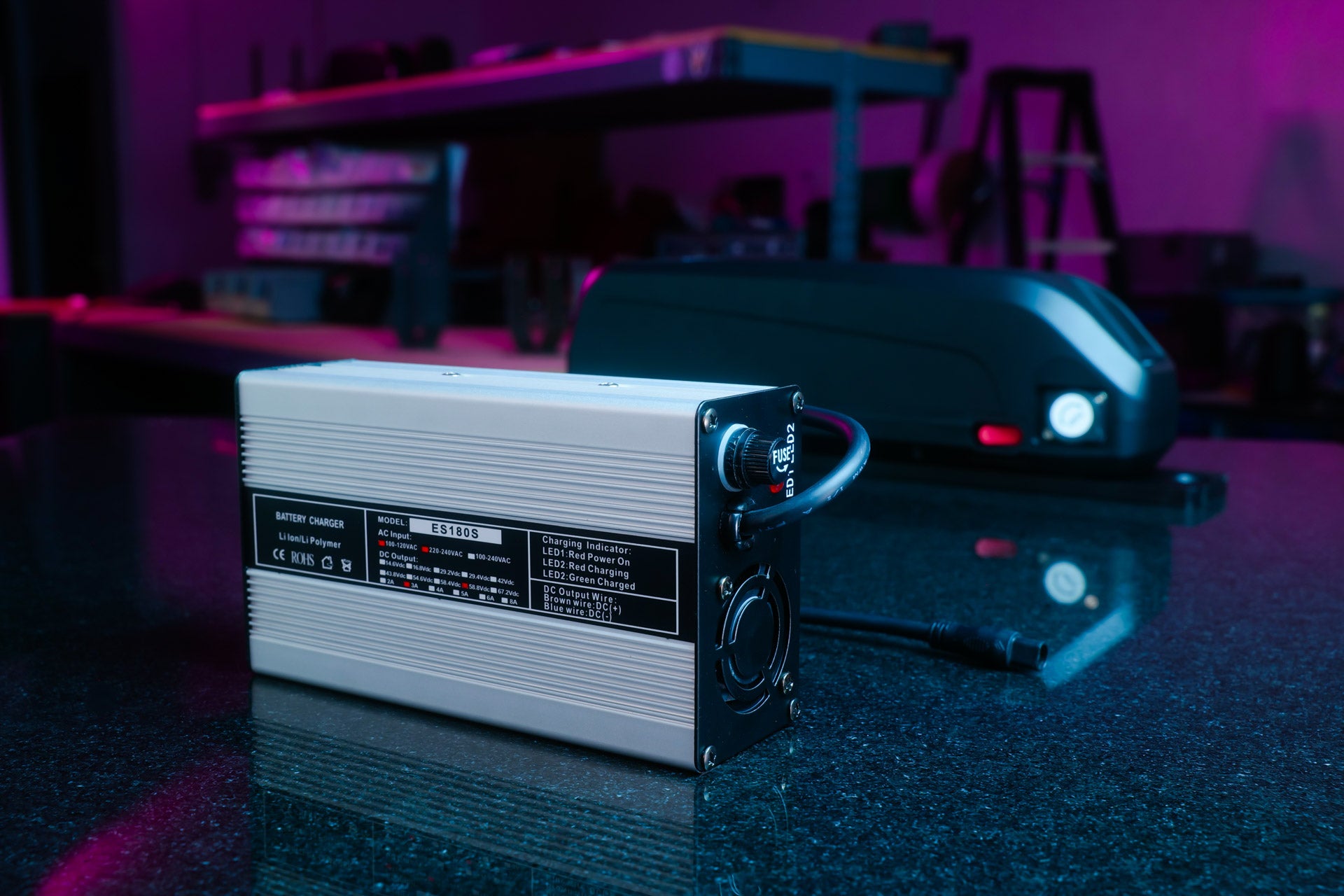

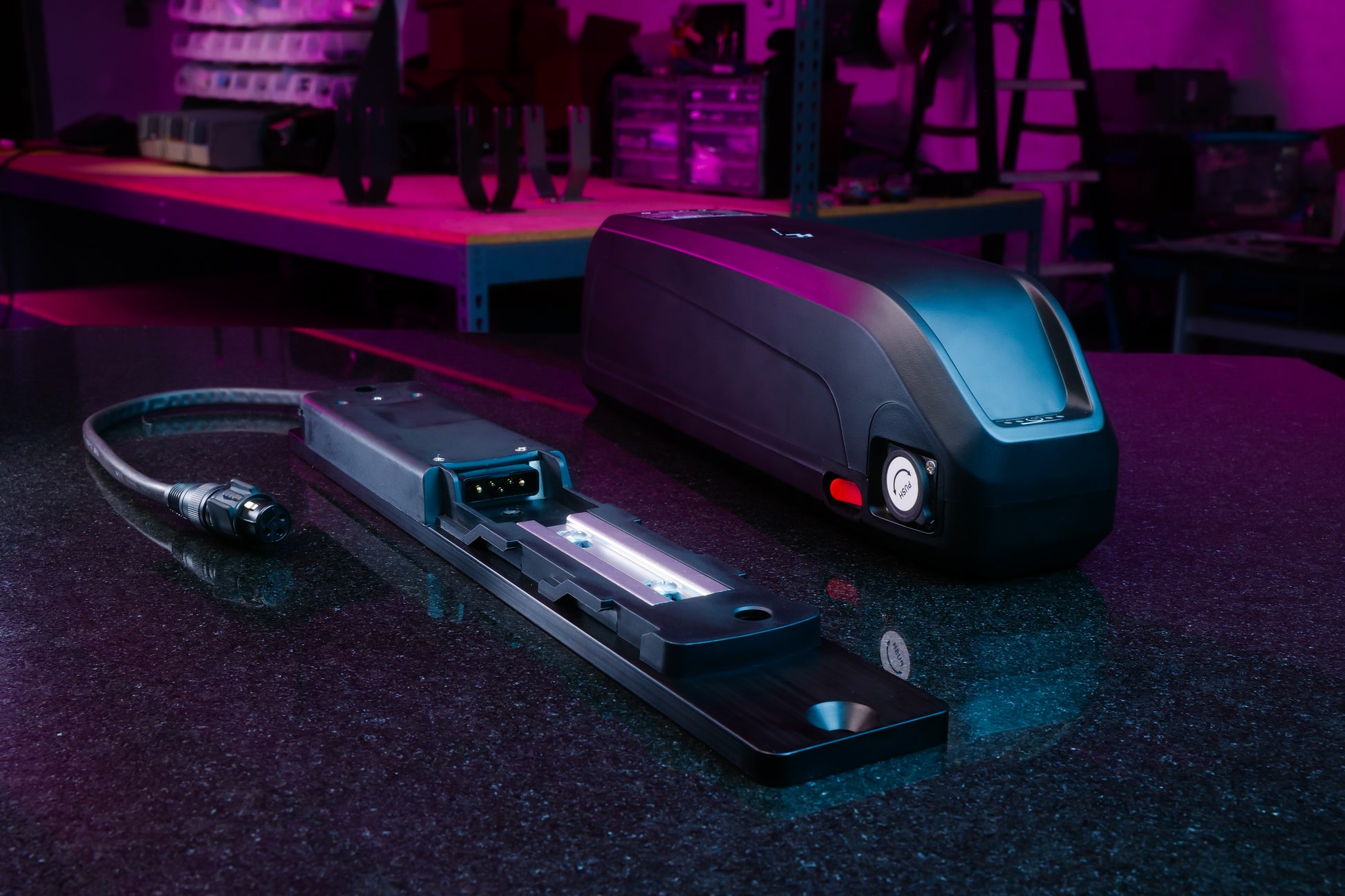

- 52V 10.5Ah Rechargeable Battery with Mounting Plate and Charger: This high-capacity battery lasts typical users a week or more.

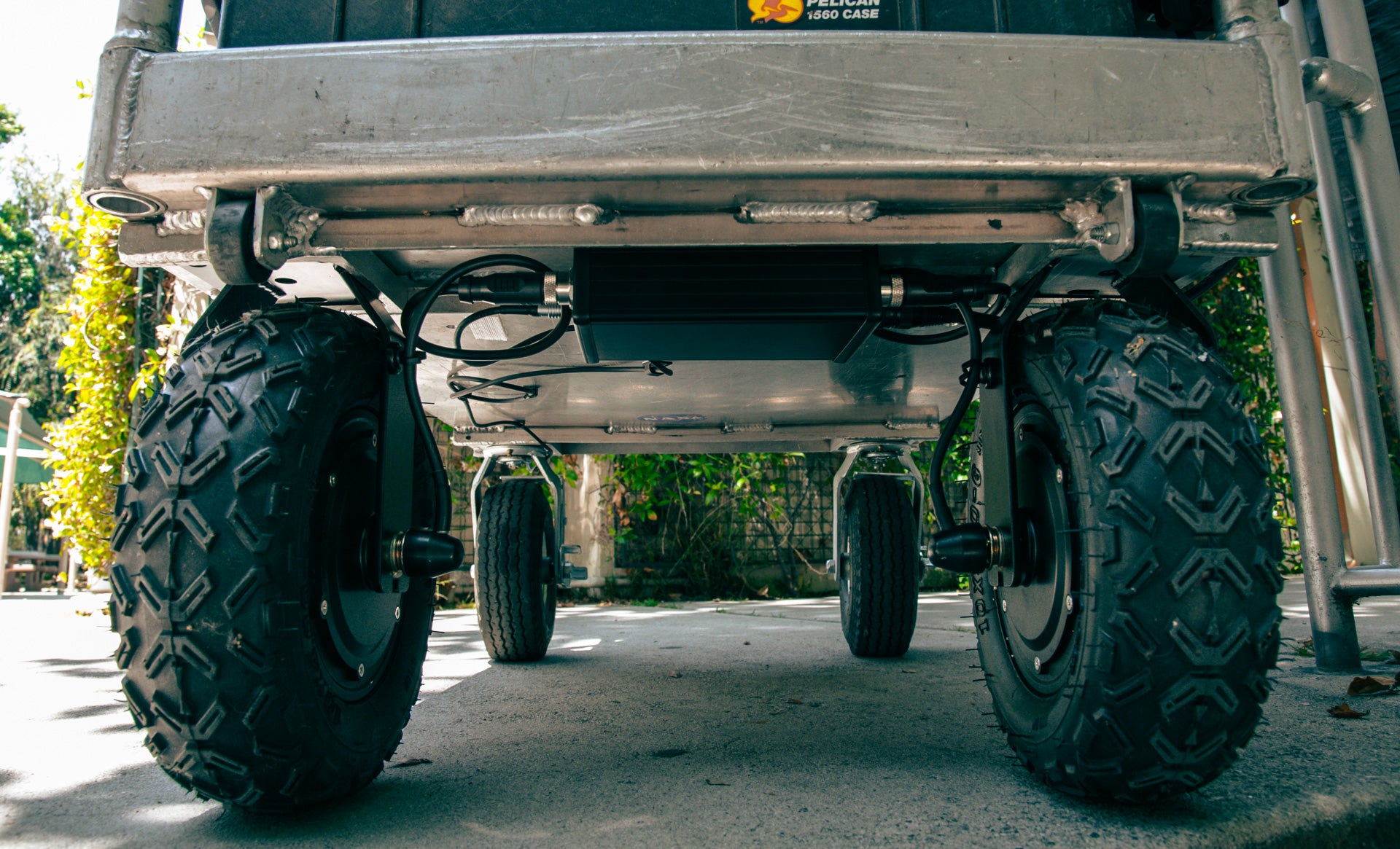

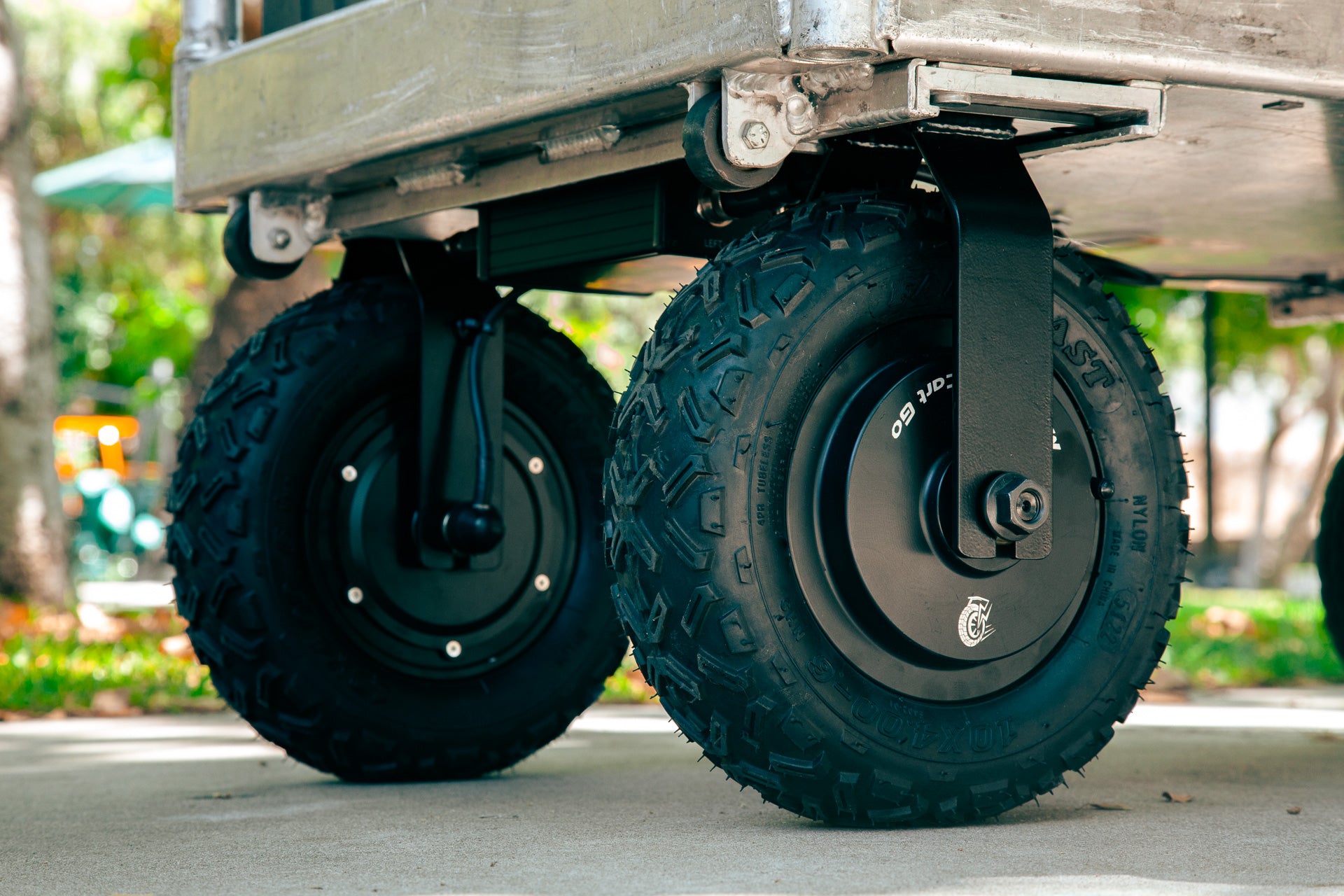

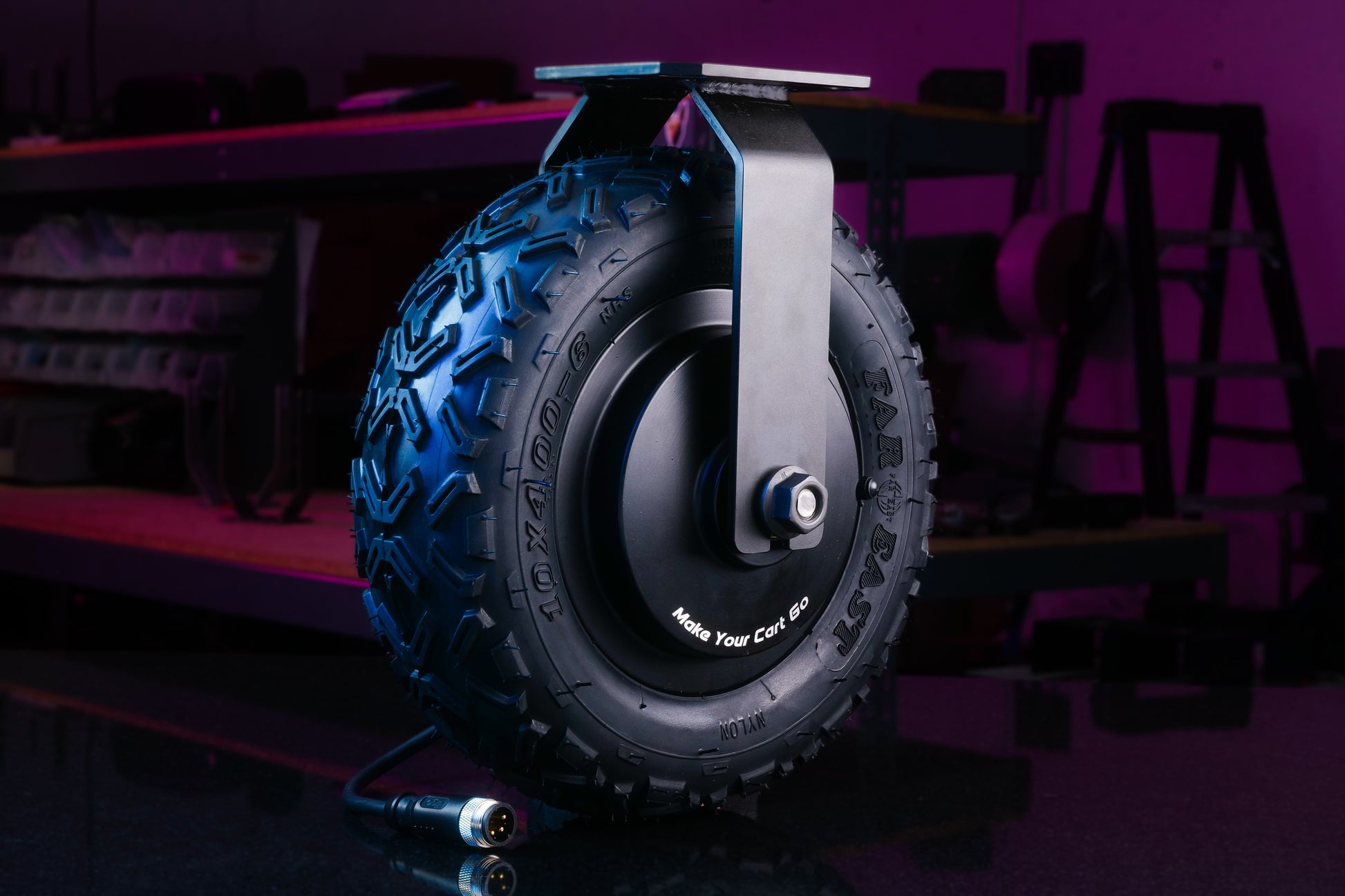

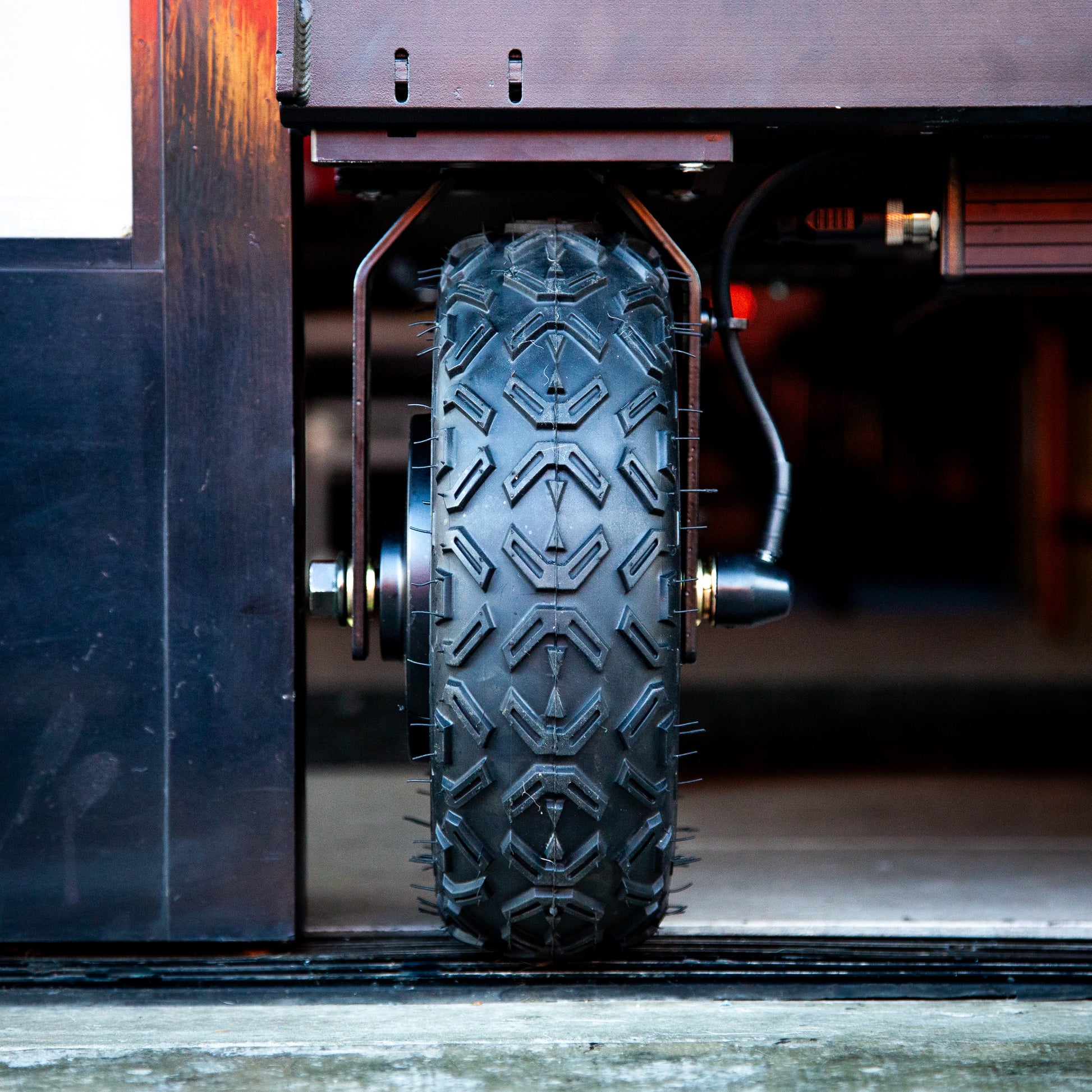

- 2 - 10" Motorized Wheels: Engineered with watertight construction for optimal durability and performance. Offset fork design improves side clearance to keep wheels within the footprint of the cart.
-

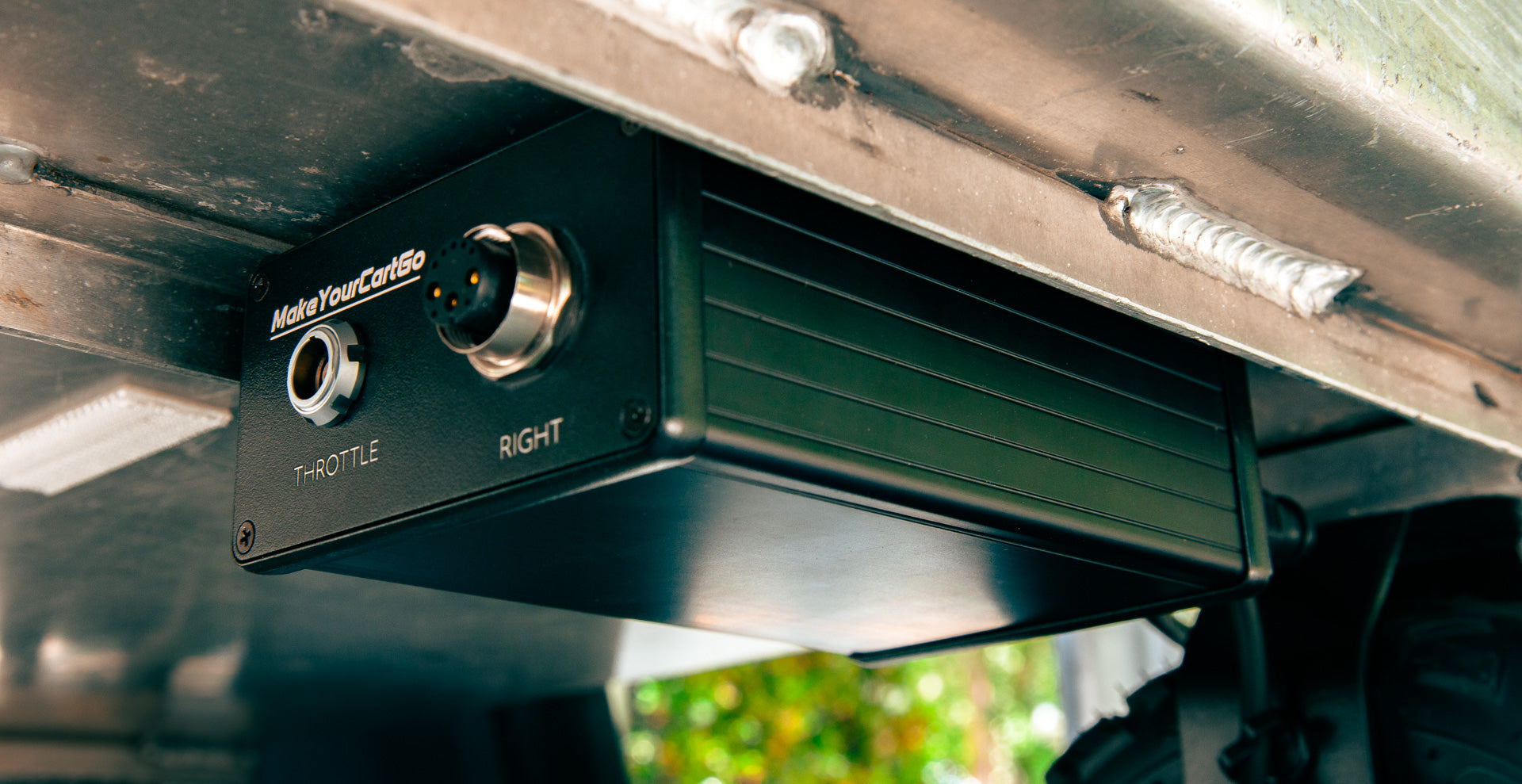

Weather-Proof 48V Aluminum Control Box: Includes IP68-rated connectors and mounting inserts for easy installation.
-

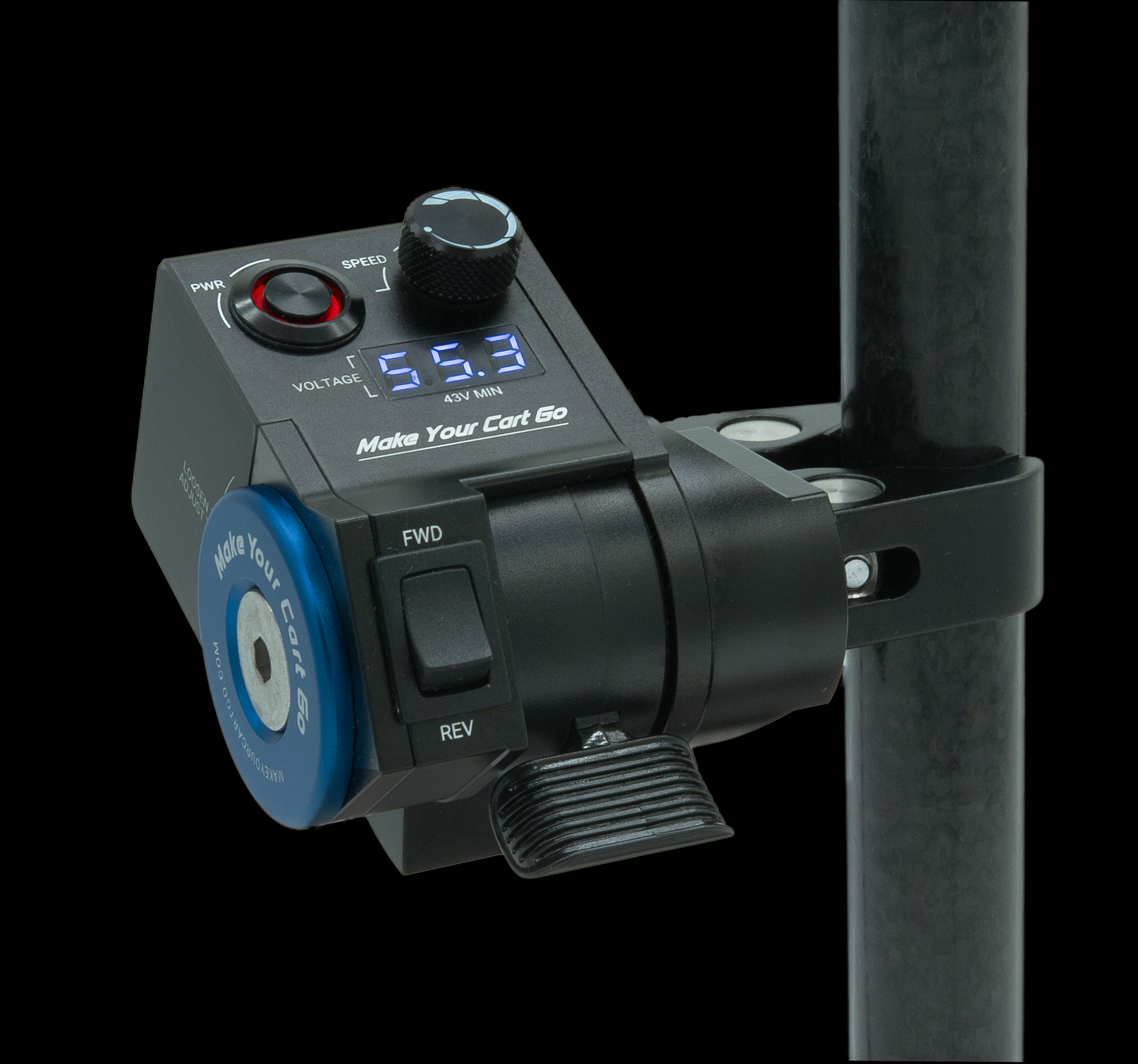

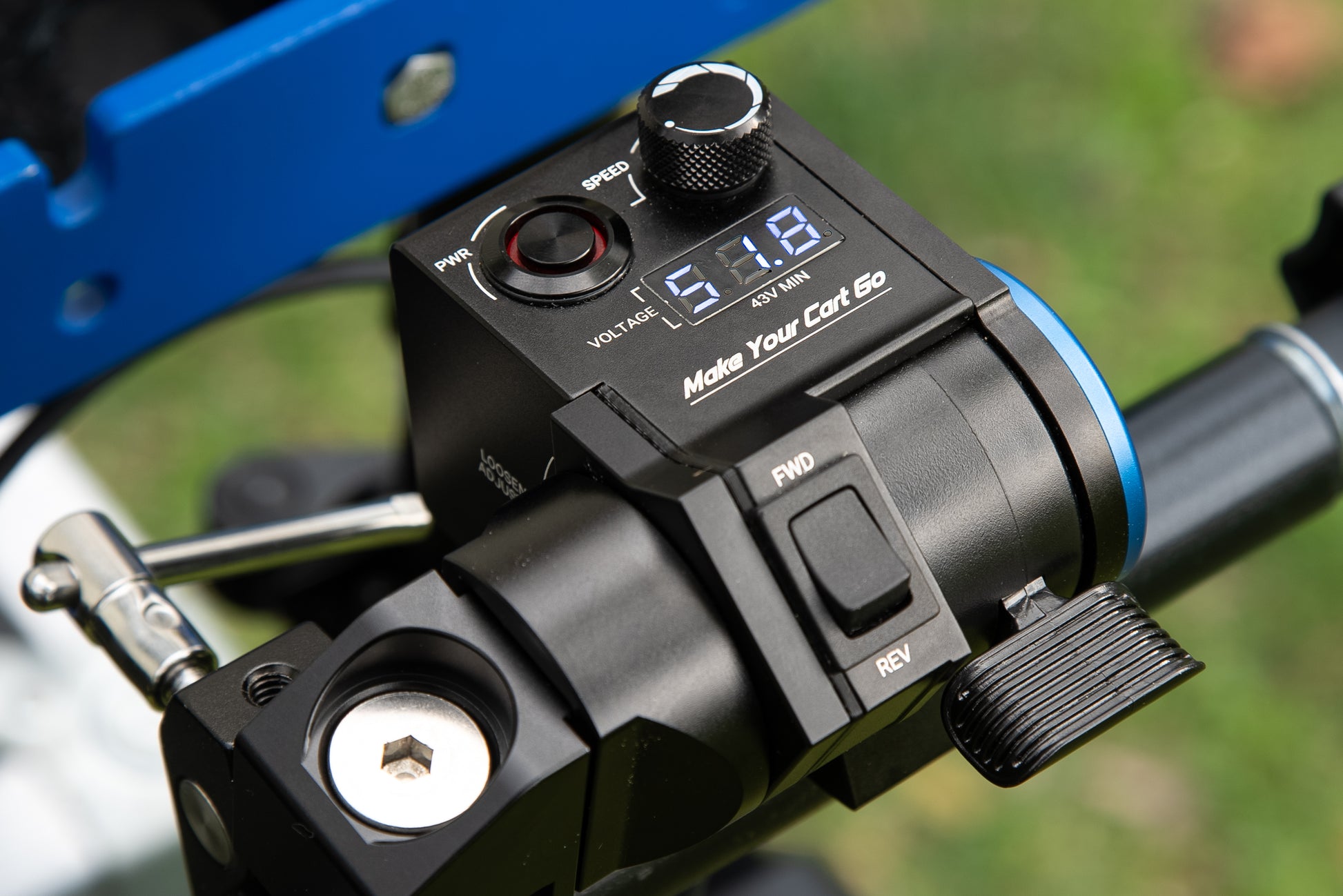

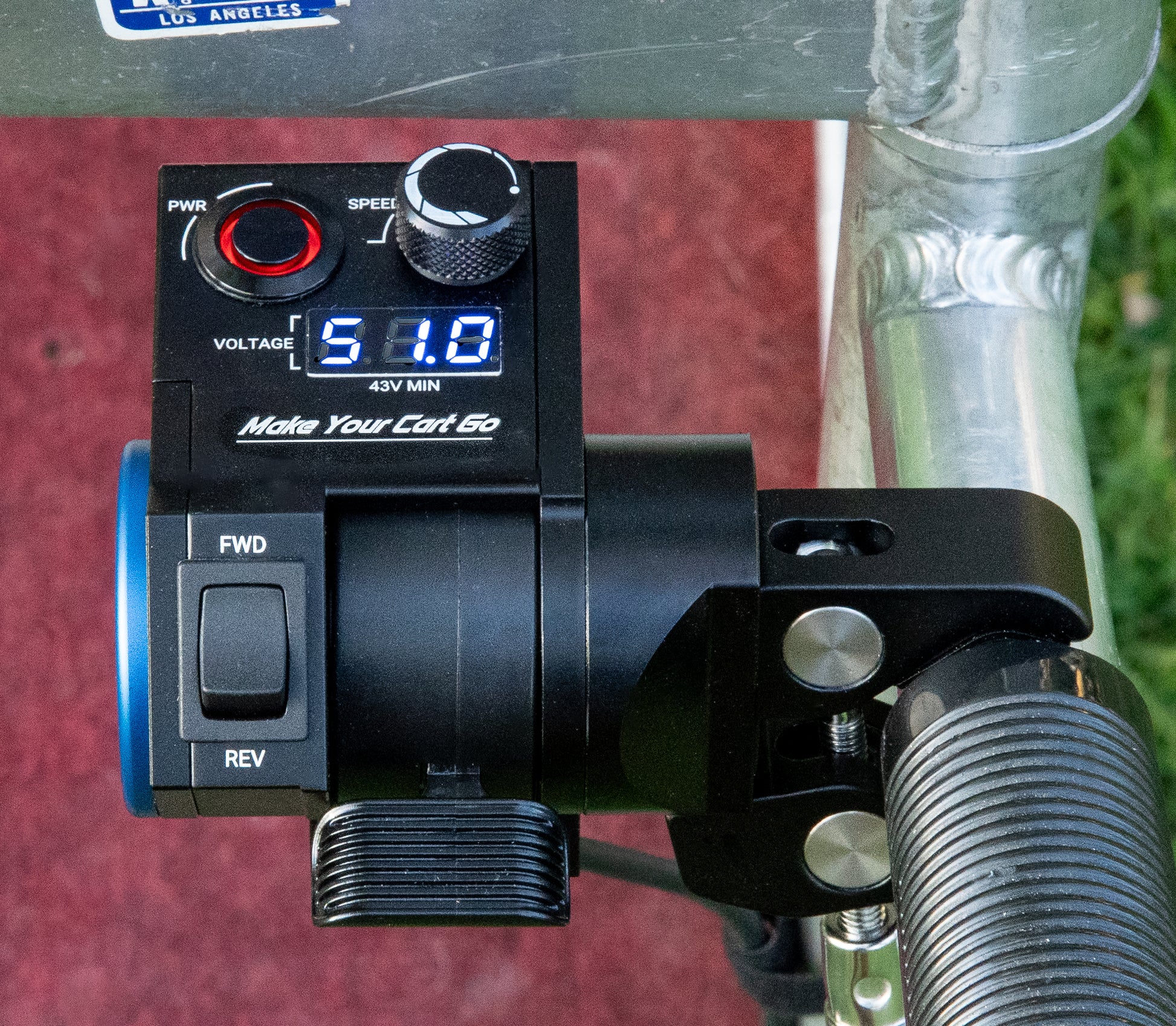

Machined Aluminum Throttle: Featuring a power cut-off switch, reverse switch and adjustable mounting options for almost any cart.
-
7' Throttle Cable: Designed with IP68-rated 6-pin connectors for secure connections.
- 5' XLR Power Cable: Durable top-of-class XLR connectors and wire.
Foam-Fill Details
Foam-Fill Details
This industrial-grade rubberized foam-fill makes flats impossible, and increases the weight capacity of the wheels.
No flat spots - these tires keep their shape even during long periods of storage.
Installation Guides and Video
Installation Guides and Video
Video Install Guide
Printed Step-by-Step Instructions
Operating Manuals
Location (48V) Kits Install Guide
Studio Kits (24V) Install Guide
CineKit List Full Install and Review

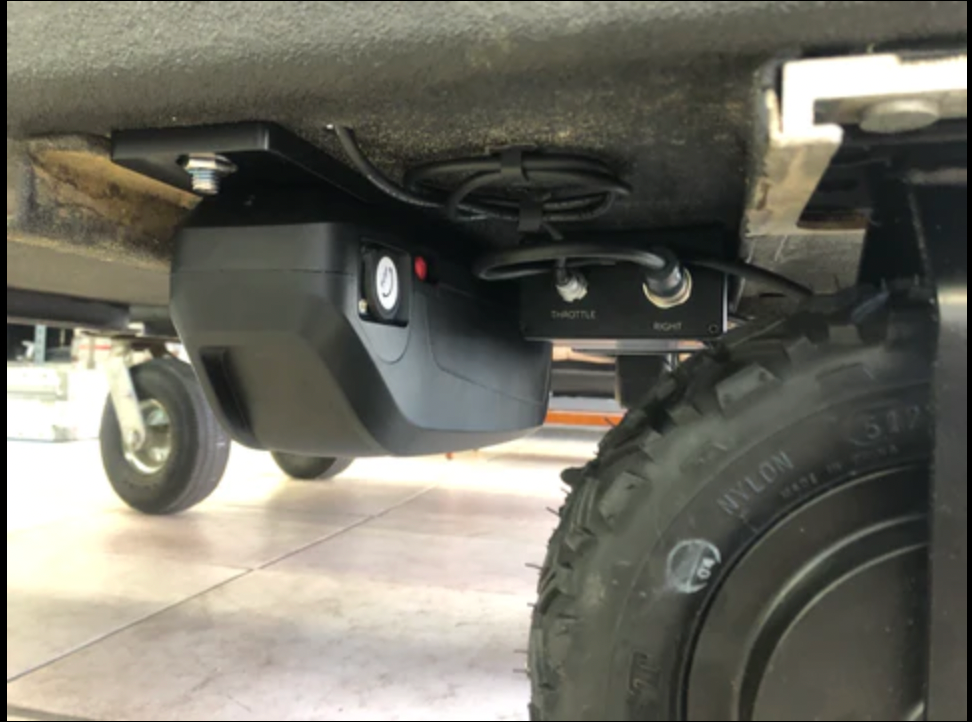

Example Installation
Technical Specs
Technical Specs
| Type: | Brushless DC Electric Hub Motor | |
| Connector: | Higo 9-pin Connector, IP68 Rated | |
| Rated Power: | 48VDC 500 Watt (800 Watt Peak) | |
| Max Torque: | 30-60 N.M. (max 80 N.M) | |
| Max Current: | 30 amps | |
| Load Weight: |
330lb Pneumatic |
|
| Weight: |
10 lbs Pneumatic |
|
| Dimensions: | 10” Wheel, 10×4-6 tubeless tire | |
| Environment: | Weather Sealed Motor, IP68 Rated Connectors | |
| Mounting: | Fork with standard 4-hole bolt pattern |
THROTTLE
| Controls: |
6-Pin Push/Pull Connector |
|
| Weight: | 1.0 lb | |
| Dimensions: | ||
| Environment: | IP68 Rated Connectors | |
| DC Input Range: | 5 VDC | |
| Mounting: | Adj. Mounting Clamp fits up to 58mm (2.28") width |

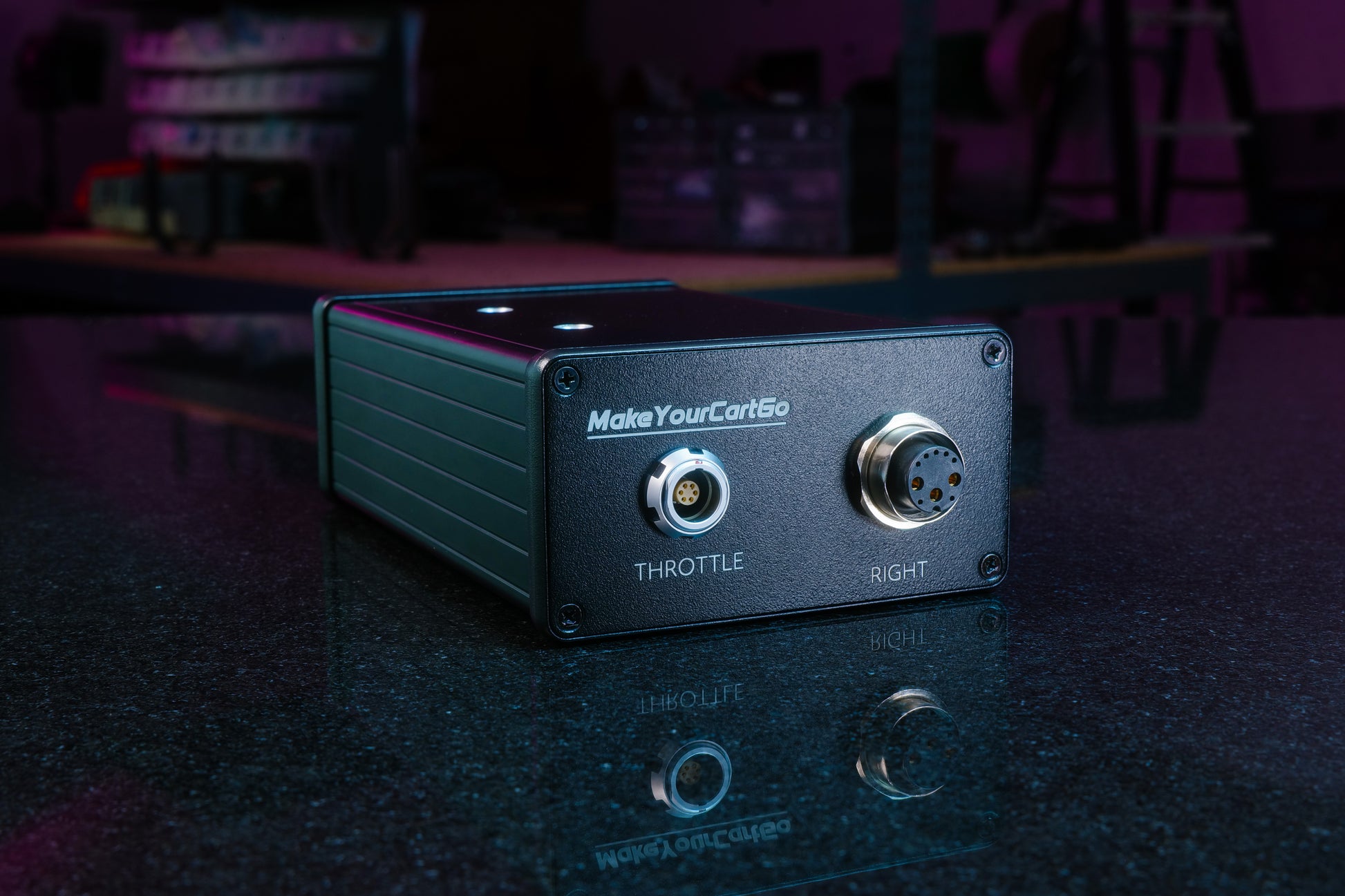

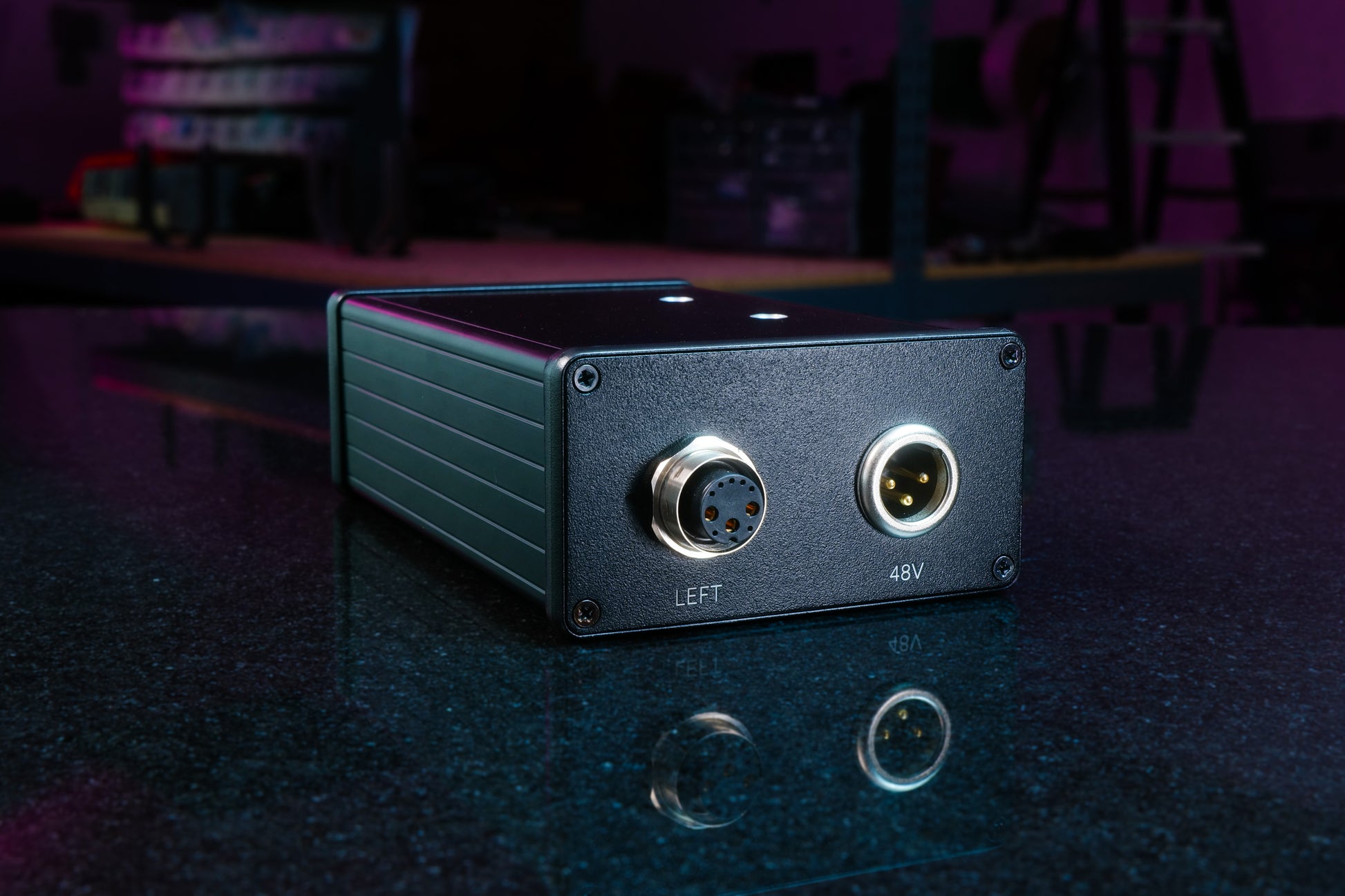

CONTROL BOX - LOCATION DUAL
| Input: |
3-Pin XLR Power Input Connector |
|
|---|---|---|
| Output: | 2x Wheel Connectors Higo 9-pin Connector IP68 Rated | |
| Weight: | 1.5lb | |
| Dimensions: | 6.30” x 4.05” x 2.09” | |
| Environment: | IP68 Rated Connectors | |
| DC Input: | 60v-42v, 17 amp DC Max Output | |
| Mounting: | 2X ¼-20 Mounting holes |
CONTROL BOX - LOCATION SINGLE
| Input: |
3-Pin XLR Power Input Connector 6-Pin Throttle Connector |
|
| Output: | 1x Wheel Connectors Higo Connector IP68 Rated | |
| Weight: | 1.0 lb | |
| Dimensions: | 6.30” x 4.05” x 2.09” | |
| Environment: | IP68 Rated Connectors | |
| DC Input: | 60v-42v, 17 amp DC Max Output | |
| Mounting: | 2X ¼-20 Mounting holes |
| Battery Type: | Li-Ion Battery, LG Cells | |
| Rated Voltage: | 52v | |
| Rated Capacity: | 10.5 Ah | |
| Battery Cell: | 3500mAh | |
| Charge Input: | 4A | |
| Connector | 3-Pin XLR, IP68 Rated | |
| Discharge: | 58.8 VDC-39.2 VDC <30 Amps | |
| Weight: | 13lb | |
| Cycles: | ≥1000 | |
| Dimensions: | 14.5 X 4 X 3.5” | |
| Environment: | 32-110F | |
| Mounting: | 2X 3/8" mounting holes on UBBP battery base plate |
|
