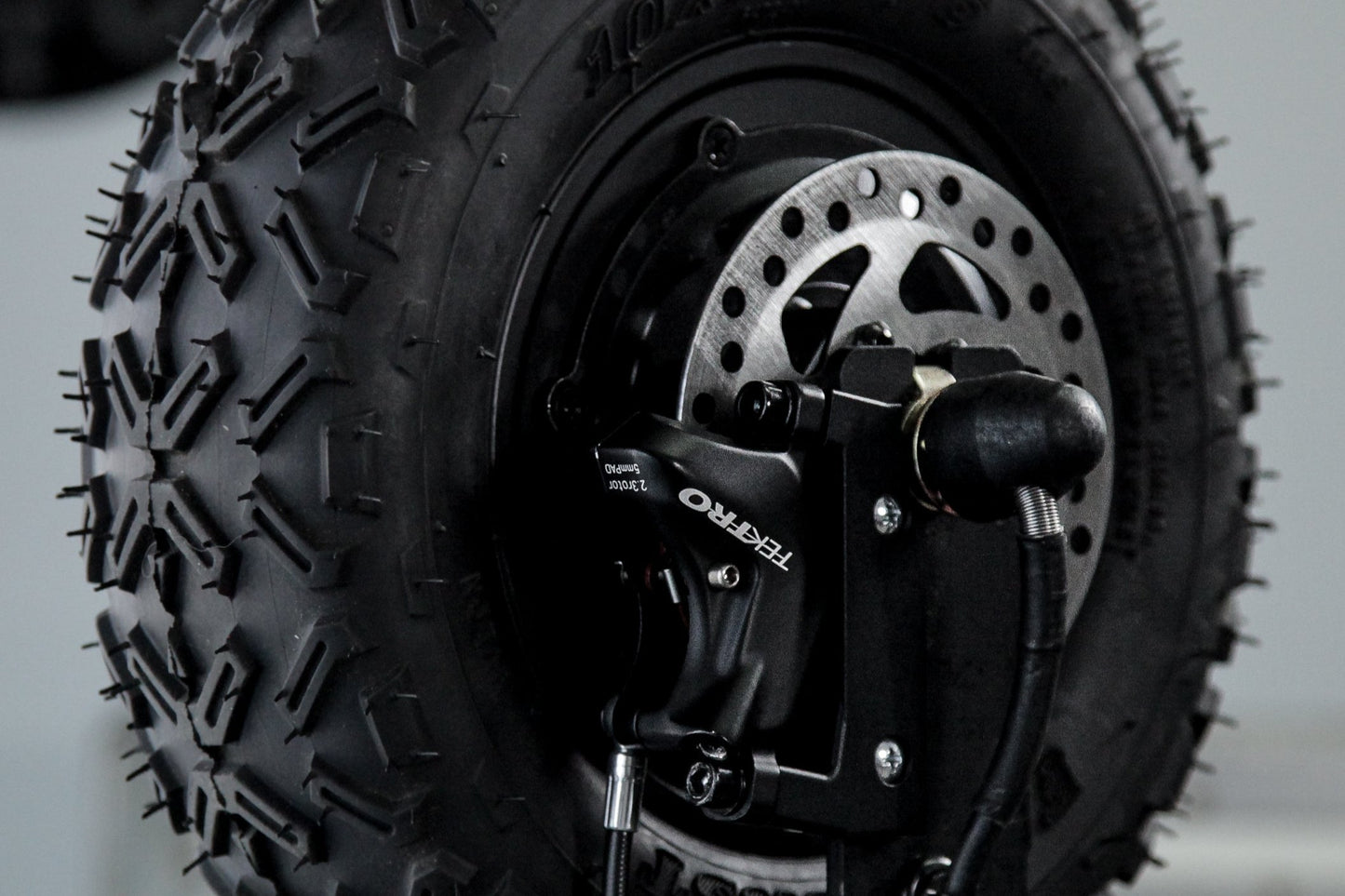

This Location Dual kit includes a Tektro Dual Caliper Hydraulic Brake Kit system that gives you ultimate braking control over your gear cart.
The disc brake system comes with a locking parking brake handle, as well as brake handle adaptors for mounting on a variety of post and handle sizes.
With a dedicated 52V battery and two powerful hub motor wheels, the LOCATION Dual with disc brakes seamlessly replaces the standard wheels on Backstage, Yeager, or any film equipment cart equipped with standard 10" casters.
This simple-to-install system includes:
- 52V 10.5Ah Rechargeable Battery with Mounting Plate and Charger: This high-capacity battery lasts typical users a week or more.
-
2 - 10" Motorized Wheels: Engineered with watertight construction for optimal durability and performance. Offset fork design improves side clearance to keep wheels within the footprint of the cart.
Dual Caliper Disc Brake Kit: Complete kit with brake rotor adaptors, brake handle adaptor, rotors and a dual caliper Tektro hydraulic brake set with parking brake lock.
-
Weather-Proof 48V Aluminum Control Box: Includes IP68-rated connectors and mounting inserts for easy installation.
-
Machined Aluminum Throttle: Featuring a power cut-off switch, reverse switch and adjustable mounting options for almost any cart.
-
7' Throttle Cable: Designed with IP68-rated 6-pin connectors for secure connections.
- 5' XLR Power Cable: Durable top-of-class XLR connectors and wire.
Foam-Fill Details
Foam-Fill Details
This industrial-grade rubberized foam-fill makes flats impossible, and increases the weight capacity of the wheels.
No flat spots - these tires keep their shape even during long periods of storage.
Installation Guides and Video
Installation Guides and Video
Video Install Guide
Printed Step-by-Step Instructions
Operating Manuals
Location (48V) Kits Install Guide
Studio Kits (24V) Install Guide
CineKit List Full Install and Review
Example Installation
Technical Specs
Technical Specs
Type: | Brushless DC Electric Hub Motor | |
Connector: | Higo 9-pin Connector, IP68 Rated | |
Rated Power: | 48VDC 500 Watt (800 Watt Peak) | |
Max Torque: | 30-60 N.M. (max 80 N.M) | |
Max Current: | 30 amps | |
Load Weight: |
330lb Pneumatic |
|
Weight: |
10 lbs Pneumatic |
|
Dimensions: | 10” Wheel, 10×4-6 tubeless tire | |
Environment: | Weather Sealed Motor, IP68 Rated Connectors | |
Mounting: | Fork with standard 4-hole bolt pattern |
THROTTLE
Controls: |
6-Pin Push/Pull Connector |
|
Weight: | 1.0 lb | |
Dimensions: | ||
Environment: | IP68 Rated Connectors | |
DC Input Range: | 5 VDC | |
Mounting: | Adj. Mounting Clamp fits up to 58mm (2.28") width |
CONTROL BOX - LOCATION DUAL
Input: |
3-Pin XLR Power Input Connector |
|
---|---|---|
Output: | 2x Wheel Connectors Higo 9-pin Connector IP68 Rated | |
Weight: | 1.5lb | |
Dimensions: | 6.30” x 4.05” x 2.09” | |
Environment: | IP68 Rated Connectors | |
DC Input: | 60v-42v, 17 amp DC Max Output | |
Mounting: | 2X ¼-20 Mounting holes |
CONTROL BOX - LOCATION SINGLE
Input: |
3-Pin XLR Power Input Connector 6-Pin Throttle Connector |
|
Output: | 1x Wheel Connectors Higo Connector IP68 Rated | |
Weight: | 1.0 lb | |
Dimensions: | 6.30” x 4.05” x 2.09” | |
Environment: | IP68 Rated Connectors | |
DC Input: | 60v-42v, 17 amp DC Max Output | |
Mounting: | 2X ¼-20 Mounting holes |
Battery Type: | Li-Ion Battery, LG Cells | |
Rated Voltage: | 52v | |
Rated Capacity: | 10.5 Ah | |
Battery Cell: | 3500mAh | |
Charge Input: | 4A | |
Connector | 3-Pin XLR, IP68 Rated | |
Discharge: | 58.8 VDC-39.2 VDC <30 Amps | |
Weight: | 13lb | |
Cycles: | ≥1000 | |
Dimensions: | 14.5 X 4 X 3.5” | |
Environment: | 32-110F | |
Mounting: | 2X 3/8" mounting holes on UBBP battery base plate |
|
